END-SUCTION PERIPHERAL PUMPS -- MKP60-1

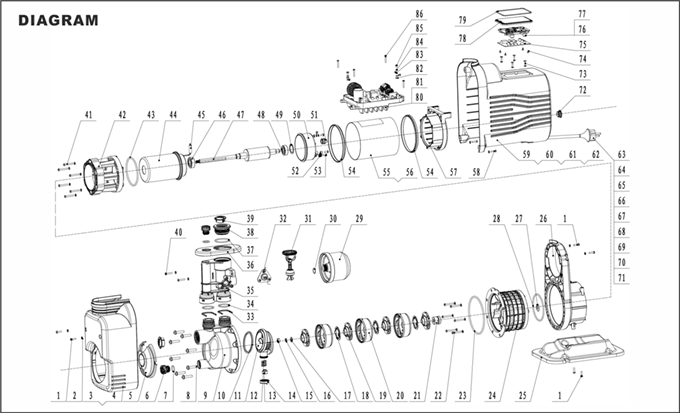

N.	DESCRIPTION	N.	DESCRIPTION	N.	DESCRIPTION	N.	DESCRIPTION	N.	DESCRIPTION	N.	DESCRIPTION
1	Screw	16	Spring washer	31	Check valve assembly	46	Bearing	61	Rear shell paste	76	Light barrier
2	Flat washer	17	Flat washer	32	Pressure sensor assembly	47	Rotor	62	Warning paste	77	Light barrier face paste
3	Front shell	18	Clip-on type wear-ring	33	Bolt	48	Bearing	63	Plug cord	78	Touch screen
4	Front shell paste	19	Impeller	34	"O" ring	49	Wave spring	64	Plug jacket	79	Sealing gasket
5	Inlet cover	20	Diversion shell assembly	35	Outlet pipe	50	End plate	65	Plug spring	80	Communication line
6	Water injection plug	21	Mechanical seal	36	Outlet cover	51	Outlet mouth	66	Connection terminal	81	Controller assembly
7	"O" ring	22	Screw	37	"O" ring	52	Cable clip	67	Insulating bush	82	Serrated lock washer
8	Screw	23	"O" ring	38	Adapater	53	Screw	68	Heat-shrinkable tube	83	Connection terminal
9	Pump body	24	Bracker	39	Dust cap	54	Cylinder sealing gasket	69	Insulating bush	84	Spring washer
10	Sealing gasket	25	Base plate	40	Screw	55	Cylinder	70	Line	85	Screw
11	Recirculation cover	26	Moter base	41	Screw	56	Thermal silica film	71	Magnetic ring	86	Screw
12	Self suction valve spring	27	Waterproof ring	42	Support frame	57	Rear and cover bracket	72	Core plug
13	Rubber suction valve	28	"O" ring	43	"O" ring	58	Screw	73	Screw
14	Self suction valve nut	29	Pressure tank	44	Stator	59	Rear shell	74	Screw
15	Hex nut	30	"O" ring	45	Insulating bush	60	Nameplate	75	Display
